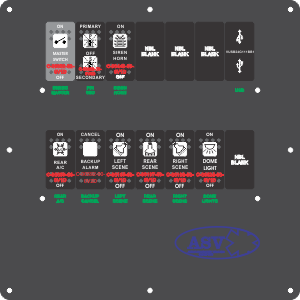

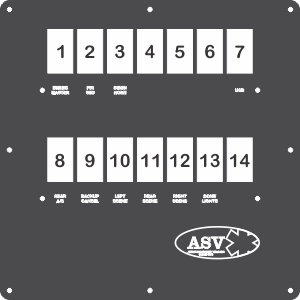

 Faceplate  Plate  Cable 1  Cable 2 Cable 3  Switch 1  Switch 2  Switch 3  Switch 4 Switch 5 Switch 6  Switch 7  Switch 8  Switch 9  Switch 10  Switch 11  Switch 12  Switch 13 Switch 14 | Plate Name: Ambulance Module Switch Part #: FAC-03473, Priority Emergency Vehicles Documents: RCT-03473-0__00.pdfCable 1 Name: DAT-01345-01XXX (2 Conductor) Part #: DAT-01345-01XXX Documents: DAT-01345-01XXX, Two Conductor Data Cable Two Conductor Data Cable, 22 awg.
Tyco Two Pin Connector.
Open End for user connection.
Cable 2 Name: DAT-01345-00XX0 (2 Conductor) Part #: DAT-01345-00XX0 Documents: DAT-01345-00XX0, Two Conductor Data Cable. Two conductor data cable, 22 awg.
Tyco connector both ends.
Specify length.
Cable 3 Name: DAT-01345-00XX0 (2 Conductor) Part #: DAT-01345-00XX0 Documents: DAT-01345-00XX0, Two Conductor Data Cable. Two conductor data cable, 22 awg.
Tyco connector both ends.
Specify length.
Switch 1 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF Part #: C-00002-02-0V1D Documents: C-00002-02-0VD1
Grey Cap single White Lens "MASTER SWITCH" pdf
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
-
00 - Black Cap, single White Lens
-
01 - White Cap, single White Lens
-
02 - Grey Cap, single White Lens
-
03 - Red Cap, single White Lens
-
04 - Yellow Cap, single White Lens
-
05 - Green Cap, single White Lens
-
06 - Black Cap, single White Lens
-
10 - Black Cap, dual White Lens
-
12 - Grey Cap, dual White Lens
-
13 - Red Cap dual White Lens
-
14 - Yellow Cap, dual White Lens
-
15 - Green Cap, dual White Lens
-
16 - Black Cap, dual White Lens
-
20 - Rubber, Black Cap, single Orange Lens
-
23 - Rubber, Red Cap, single Orange Lens
-
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
-
0V1D - Carling Switch Body ON-OFF, Maintained
-
0V2D - Carling Switch Body, (ON)-OFF, Momentary
-
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
-
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
-
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary Switch 1 Legend: Blank Legend Switch 2 Name: "PRIMARY-SECONDARY" Black Switch Cap dual White Lens ON-OFF-ON Part #: C-00038-10-0V6D Documents: C-00038-10-0V6D
Black Cap dual White Lens "Primary Secondary/Off"pdf
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
-
00 - Black Cap, single White Lens
-
01 - White Cap, single White Lens
-
02 - Grey Cap, single White Lens
-
03 - Red Cap, single White Lens
-
04 - Yellow Cap, single White Lens
-
05 - Green Cap, single White Lens
-
06 - Black Cap, single White Lens
-
10 - Black Cap, dual White Lens
-
12 - Grey Cap, dual White Lens
-
13 - Red Cap dual White Lens
-
14 - Yellow Cap, dual White Lens
-
15 - Green Cap, dual White Lens
-
16 - Black Cap, dual White Lens
-
20 - Rubber, Black Cap, single Orange Lens
-
23 - Rubber, Red Cap, single Orange Lens
-
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
-
0V1D - Carling Switch Body ON-OFF, Maintained
-
0V2D - Carling Switch Body, (ON)-OFF, Momentary
-
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
-
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
-
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary Switch 2 Legend: Blank Legend Switch 3 Name: "SIREN HORN" Black Switch Cap single White Lens ON-OFF Part #: C-00443-00-0V1D Documents: C-00443-00-0V1D
Black Cap single White Lens "SIREN HORN".pdf RCT Switch Legend, Cap Type & Switch Body, Part Number System OPTIONAL SWITCH CAPS00 - Black Cap, single White Lens 01 - White Cap, single White Lens 02 - Grey Cap, single White Lens 03 - Red Cap, single White Lens 04 - Yellow Cap, single White Lens 05 - Green Cap, single White Lens 06 - Black Cap, single White Lens 10 - Black Cap, dual White Lens 12 - Grey Cap, dual White Lens 13 - Red Cap dual White Lens 14 - Yellow Cap, dual White Lens 15 - Green Cap, dual White Lens 16 - Black Cap, dual White Lens 20 - Rubber, Black Cap, single Orange Lens 23 - Rubber, Red Cap, single Orange Lens 30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS. 0V1D - Carling Switch Body ON-OFF, Maintained 0V2D - Carling Switch Body, (ON)-OFF, Momentary 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking 0V6D - Carling Switch Body, ON-OFF-ON, Maintained 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 3 Legend: Blank Legend Switch 4 Name: "NBL-BLANK", Blank-Black Part #: Blank-Black,"NBL-BLANK" Documents: BLANK Black NBL.pdf Switch 4 Legend: Blank Legend Switch 5 Name: "NBL-BLANK", Blank-Black Part #: Blank-Black,"NBL-BLANK" Documents: BLANK Black NBL.pdf Switch 5 Legend: Blank Legend Switch 6 Name: "NBL-BLANK", Blank-Black Part #: Blank-Black,"NBL-BLANK" Documents: BLANK Black NBL.pdf Switch 6 Legend: Blank Legend Switch 7 Name: Blank Switch Part #: VUSB24G111BB1 Documents: VUSB24G111BB11-USB.pdfSwitch 8 Name: "REAR A/C" Black Switch Cap single White Lens ON-OFF Part #: C-00089-00-0V1D Documents: C-00089-00-0V1D
Black Cap single White Lens "Rear AC/ On-Off" pdf RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
-
00 - Black Cap, single White Lens
-
01 - White Cap, single White Lens
-
02 - Grey Cap, single White Lens
-
03 - Red Cap, single White Lens
-
04 - Yellow Cap, single White Lens
-
05 - Green Cap, single White Lens
-
06 - Black Cap, single White Lens
-
10 - Black Cap, dual White Lens
-
12 - Grey Cap, dual White Lens
-
13 - Red Cap dual White Lens
-
14 - Yellow Cap, dual White Lens
-
15 - Green Cap, dual White Lens
-
16 - Black Cap, dual White Lens
-
20 - Rubber, Black Cap, single Orange Lens
-
23 - Rubber, Red Cap, single Orange Lens
-
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
-
0V1D - Carling Switch Body ON-OFF, Maintained
-
0V2D - Carling Switch Body, (ON)-OFF, Momentary
-
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
-
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
-
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary Switch 8 Legend: Blank Legend Switch 9 Name: "CANCEL BACKUP ALARM" Black Switch Cap Single White Lens (ON) OFF Part #: C-00592-00-0V2D Documents: C-00592-00-0V2D CANCEL BACKUP ALARM.pdf Switch 9 Legend: Blank Legend Switch 10 Name: "LEFT SCENE" Black Switch Cap single White Lens ON-OFF Part #: C-00105-00-0V1D Documents: C-00105-00-0V1D Black Switch Cap single White Lens "LEFT SCENE" ON-OFF.pdf
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
-
00 - Black Cap, single White Lens
-
01 - White Cap, single White Lens
-
02 - Grey Cap, single White Lens
-
03 - Red Cap, single White Lens
-
04 - Yellow Cap, single White Lens
-
05 - Green Cap, single White Lens
-
06 - Black Cap, single White Lens
-
10 - Black Cap, dual White Lens
-
12 - Grey Cap, dual White Lens
-
13 - Red Cap dual White Lens
-
14 - Yellow Cap, dual White Lens
-
15 - Green Cap, dual White Lens
-
16 - Black Cap, dual White Lens
-
20 - Rubber, Black Cap, single Orange Lens
-
23 - Rubber, Red Cap, single Orange Lens
-
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
-
0V1D - Carling Switch Body ON-OFF, Maintained
-
0V2D - Carling Switch Body, (ON)-OFF, Momentary
-
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
-
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
-
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary Switch 10 Legend: Blank Legend Switch 11 Name: "REAR SCENE" Black Switch Cap single White Lens ON-OFF Part #: C-00107-00-0V1D Documents: C-00107-00-0V1D Black Switch Cap single White Lens "REAR SCENE" ON-OFF.pdf RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
-
00 - Black Cap, single White Lens
-
01 - White Cap, single White Lens
-
02 - Grey Cap, single White Lens
-
03 - Red Cap, single White Lens
-
04 - Yellow Cap, single White Lens
-
05 - Green Cap, single White Lens
-
06 - Black Cap, single White Lens
-
10 - Black Cap, dual White Lens
-
12 - Grey Cap, dual White Lens
-
13 - Red Cap dual White Lens
-
14 - Yellow Cap, dual White Lens
-
15 - Green Cap, dual White Lens
-
16 - Black Cap, dual White Lens
-
20 - Rubber, Black Cap, single Orange Lens
-
23 - Rubber, Red Cap, single Orange Lens
-
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
-
0V1D - Carling Switch Body ON-OFF, Maintained
-
0V2D - Carling Switch Body, (ON)-OFF, Momentary
-
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
-
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
-
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary Switch 11 Legend: Blank Legend Switch 12 Name: "RIGHT SCENE" Black Switch Cap single White Lens ON-OFF Part #: C-00106-00-0V1D Documents: C-00106-00-0V1D Black Switch Cap single White Lens "RIGHT SCENE" ON-OFF.pdf RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
-
00 - Black Cap, single White Lens
-
01 - White Cap, single White Lens
-
02 - Grey Cap, single White Lens
-
03 - Red Cap, single White Lens
-
04 - Yellow Cap, single White Lens
-
05 - Green Cap, single White Lens
-
06 - Black Cap, single White Lens
-
10 - Black Cap, dual White Lens
-
12 - Grey Cap, dual White Lens
-
13 - Red Cap dual White Lens
-
14 - Yellow Cap, dual White Lens
-
15 - Green Cap, dual White Lens
-
16 - Black Cap, dual White Lens
-
20 - Rubber, Black Cap, single Orange Lens
-
23 - Rubber, Red Cap, single Orange Lens
-
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
-
0V1D - Carling Switch Body ON-OFF, Maintained
-
0V2D - Carling Switch Body, (ON)-OFF, Momentary
-
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
-
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
-
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary Switch 12 Legend: Blank Legend Switch 13 Name: "DOME LIGHT" Black Switch Cap single White Lens ON-OFF Part #: C-00024-00-0V1D Documents: C-00024-00-0V1D
Black Cap single White Lens "Dome Light/ON-OFF" pdf RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
-
00 - Black Cap, single White Lens
-
01 - White Cap, single White Lens
-
02 - Grey Cap, single White Lens
-
03 - Red Cap, single White Lens
-
04 - Yellow Cap, single White Lens
-
05 - Green Cap, single White Lens
-
06 - Black Cap, single White Lens
-
10 - Black Cap, dual White Lens
-
12 - Grey Cap, dual White Lens
-
13 - Red Cap dual White Lens
-
14 - Yellow Cap, dual White Lens
-
15 - Green Cap, dual White Lens
-
16 - Black Cap, dual White Lens
-
20 - Rubber, Black Cap, single Orange Lens
-
23 - Rubber, Red Cap, single Orange Lens
-
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
-
0V1D - Carling Switch Body ON-OFF, Maintained
-
0V2D - Carling Switch Body, (ON)-OFF, Momentary
-
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
-
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
-
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary Switch 13 Legend: Blank Legend Switch 14 Name: "NBL-BLANK", Blank-Black Part #: Blank-Black,"NBL-BLANK" Documents: BLANK Black NBL.pdf Switch 14 Legend: Blank Legend |
