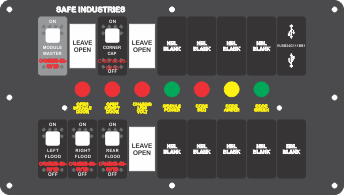

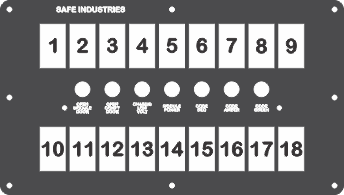

Plate Name: Ambulance Module Switch
   Part #: FAC-03547, Safe Industries
Documents: RCT-03547-0__00.pdf
Cable 1 Name: DAT-01345-01XXX (2 Conductor)
   Part #: DAT-01345-01XXX
Documents: DAT-01345-01XXX, Two Conductor Data Cable


Two Conductor Data Cable, 22 awg.

Tyco Two Pin Connector.

Open End for user connection.





Switch 1 Name: "MODULE MASTER" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00556-02-0V1D
Documents: C-00556-02-0V1D Module Master.pdf

   Switch 1 Legend: Blank Legend

Switch 2 Name: Blank Switch

Switch 3 Name: "CORNER CAP" Black Switch Cap Single White Lens ON-OFF
   Part #: C-00740-00-0V1D
Documents: C-00740-00-0V1D "CORNER CAP".pdf

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "NBL-BLANK", Blank-Black
   Part #: Blank-Black,"NBL-BLANK"
Documents: BLANK Black NBL.pdf

   Switch 5 Legend: Blank Legend

Switch 6 Name: "NBL-BLANK", Blank-Black
   Part #: Blank-Black,"NBL-BLANK"
Documents: BLANK Black NBL.pdf

   Switch 6 Legend: Blank Legend

Switch 7 Name: "NBL-BLANK", Blank-Black
   Part #: Blank-Black,"NBL-BLANK"
Documents: BLANK Black NBL.pdf

   Switch 7 Legend: Blank Legend

Switch 8 Name: "NBL-BLANK", Blank-Black
   Part #: Blank-Black,"NBL-BLANK"
Documents: BLANK Black NBL.pdf

   Switch 8 Legend: Blank Legend

Switch 9 Name: Blank Switch
   Part #: VUSB24G111BB1
Documents: VUSB24G111BB11-USB.pdf

Switch 10 Name: "LEFT FLOOD" Black Switch Cap single white Lens ON-OFF
   Part #: C-00558-00-0V1D
Documents: C-00558-00-0V1D Left Flood.pdf

   Switch 10 Legend: Blank Legend

Switch 11 Name: "RIGHT FLOOD" Black Switch Cap single white Lens ON-OFF
   Part #: C-00559-00-0V1D
Documents: C-00559-00-0V1D Right Flood.pdf

   Switch 11 Legend: Blank Legend

Switch 12 Name: "REAR FLOOD" Black Switch Cap single White Lens ON-OFF
   Part #: C-00560-00-0V1D
Documents: C-00560-00-0V1D Rear Flood.pdf

   Switch 12 Legend: Blank Legend

Switch 13 Name: Blank Switch

Switch 14 Name: "NBL-BLANK", Blank-Black
   Part #: Blank-Black,"NBL-BLANK"
Documents: BLANK Black NBL.pdf

   Switch 14 Legend: Blank Legend

Switch 15 Name: "NBL-BLANK", Blank-Black
   Part #: Blank-Black,"NBL-BLANK"
Documents: BLANK Black NBL.pdf

   Switch 15 Legend: Blank Legend

Switch 16 Name: "NBL-BLANK", Blank-Black
   Part #: Blank-Black,"NBL-BLANK"
Documents: BLANK Black NBL.pdf

   Switch 16 Legend: Blank Legend

Switch 17 Name: "NBL-BLANK", Blank-Black
   Part #: Blank-Black,"NBL-BLANK"
Documents: BLANK Black NBL.pdf

   Switch 17 Legend: Blank Legend

Switch 18 Name: "NBL-BLANK", Blank-Black
   Part #: Blank-Black,"NBL-BLANK"
Documents: BLANK Black NBL.pdf

   Switch 18 Legend: Blank Legend
