Faceplate Builder




Listed are all products that use Ford Lower.:

Use with; "Bus Power Center", RCT-01760-00000

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Optional Data Cable 1:  DAT-01349-02006 (Operates "4A & 4B with "IGNITION", choose when omitting "SWITCH 7".)

Optional Data Cable 1:  DAT-01349-03006 (Operates "4A, 4B & 5B with "IGNITION". Choose when omitting "SWITCH 7 & 8". NOTE: An ON/OFF switch in position 8 may be used  &  will operate 5A).

Optional Data Cable 1: DAT-01349-04006 (Operates "4A, 4B, 5A & 5B with "IGNITION". Choose when omitting "SWITCH 7 & 8").

Optional Data Cable 1: DAT-01349-05006 (Operates "4A, 4B, 5A & 5B with "IGNITION". Choose when omitting "SWITCH 7 & 8".

Optional Data Cable 1:   DAT-01349-07006 Operates "4A, 4B, 5B.  Mate-N-Loc operates 6A & 6B with "IGNITION". NOTE: An ON/OFF switch in position 8 may be used  &  will operate 5A).

Optional Data Cable 1:  DAT-01349-08006  Operates "4A, 4B, 5A, 5B.  Mate-N-Loc operates 6A & 6B with "IGNITION". Choose when omitting "SWITCH 7, 8 & 9".

Optional Data Cable 1:  DAT-01349-11006  Operates "4A, 4B.  Mate-N-Loc operates 6A & 6B with "IGNITION". Choose when omitting "SWITCH 7 & 9".

Starcraft, DAT-01352-00200 (30 Conductor, 20 Foot)

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

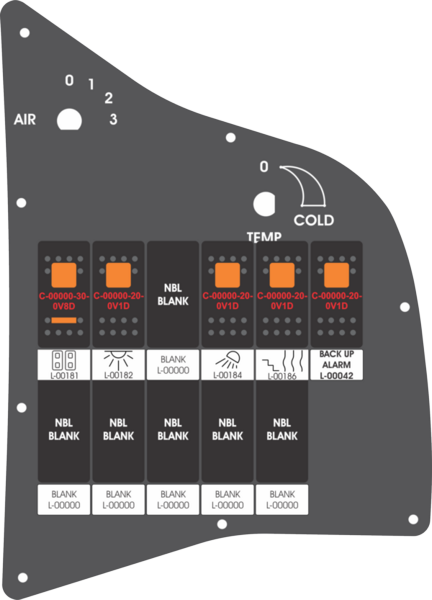

04 Switch

Faceplate

Plate

Switch 1

Legend 1

Switch 2

Legend 2

Switch 4

Legend 4

Switch 6

Legend 6

Power Center 1
Plate Name: Ford Lower.
   Part #: FAC-01241, Starcraft Bus by Forest River, Inc.
Documents: RCT-01241-0__01 Starcraft Bus.pdf
Cable 1 Name: Blank Cable
Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
   Part #: C-00000-30-0V8D
Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Entry Door (Symbol)
   Part #: L-00181

Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Interior Light (Symbol)
   Part #: L-00182

Switch 3 Name: Blank Switch

Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: Reading Light (Symbol)
   Part #: L-00184

Switch 5 Name: Blank Switch

Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 6 Legend: FAST IDLE
   Part #: L-00006

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: Blank Switch

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Power Center 1 Name: Bus Power Center
   Part #: RCT-01760-00000
Documents: RCT-01760-00000 Bus Power Center.pdf
